16 min read DevOps
What I learned wiring SSO across my homelab

I have a small homelab cluster — a Raspberry Pi 5 control plane, three amd64 workers, kubeadm holding it all together. For years, every app on it had its own login form. Vault had a root token in my password manager. Grafana had an admin user. Nextcloud had a different admin user. Headlamp had a service account token I copied around. Every app I added made the mess worse.

So I sat down one weekend to fix it. The plan was simple: install Authentik, wire every app to it via OIDC, and stop juggling logins. The plan was simple. The execution was not.

This is not a tutorial. There are plenty of those. This is a list of the things that wasted my time, in the order they wasted it, so that maybe yours gets wasted a little less.

What I started with

A handful of apps, all already running on the cluster:

Everything was Terraform-managed: one *.tf file per app, a values/*.yaml next to it for Helm. I wanted Authentik to fit into that same shape so adding the next app would mean a 30-line Terraform file and nothing else.

It mostly worked. The 30-line files exist. But getting there took a different number of hours than I’d planned.

The first wall: a network that doesn’t loop back

My home router doesn’t hairpin NATWhen a router accepts packets sent from inside the network to its own public IP and routes them back inside. Many consumer routers don't support it. . I knew this in the abstract. I did not feel it until pods inside the cluster started failing to talk to Authentik.

The setup is mundane. Public DNS *.klimczak.xyz points to my public IP. From outside the network, everything resolves and works. From inside a pod, the pod resolves authentik.klimczak.xyz to the public IP, sends a packet to it, the packet leaves the cluster, hits my router, and the router refuses to bend it back inward. The connection just hangs.

Pi-hole runs on the network with internal A records pointing at the nginx-ingress LoadBalancer (192.168.1.30), so apps that use Pi-hole as their resolver are fine. The fix for the rest is one of:

The lesson: always test reachability from inside the actual consuming pod, not from your laptop. My laptop hits Authentik over the public address fine. The pod two meters away from my laptop cannot.

The second wall: certificates without port 80

Port 80 isn’t forwarded to my cluster. I’d been ignoring that because everything had certificates already — cert-manager had been issuing them via HTTP-01ACME challenge that proves domain control by serving a token over HTTP at /.well-known/acme-challenge/. Requires port 80 reachable from Let's Encrypt. ACME at some point in the past. None of them were renewing. They’d just stop working in roughly 90 days and I’d notice when something started 503-ing.

The fix is DNS-01ACME challenge that proves domain control by creating a TXT DNS record. Doesn't need any open port, but requires API access to your DNS provider. with the OVH webhook (my registrar) — a separate ClusterIssuer (letsencrypt-prod-dns) and every Ingress migrated to it. Boring change, but the failure mode is so quiet it deserves attention before you have a dozen apps depending on the broken issuer.

The biggest gotcha: the empty groups claim

This one cost me an entire evening across two different apps before I figured it out.

You configure Authentik. You create a group, put your user in it, attach a policy binding to the application. You request the groups scope on the consumer. You log in. The token comes back with "groups": [].

You stare at the token. You stare at the Authentik UI showing your user is in the group. You stare at the token again. You read the docs. The default profile scope says it includes groups. You rebuild the property mappings. Same result.

What’s actually happening: Authentik’s default profile scope mapping uses Django’s generic request.user.groups.all() accessor, which silently returns an empty queryset in modern Authentik. The canonical accessor is request.user.ak_groups.all(). The default mapping has not been updated. It works. It returns no data.

The fix is one custom property mapping that every app reuses:

resource "authentik_property_mapping_provider_scope" "groups" {
  name       = "OAuth2 groups"
  scope_name = "groups"
  expression = <<-EOT
    return {
      "groups": [group.name for group in request.user.ak_groups.all()],
    }
  EOT
}

Then attach this scope’s ID to every authentik_provider_oauth2’s property_mappings, and request groups on the consumer side. Without both of those, group-based authorization rules silently deny everyone — which is the worst possible failure mode, because it looks like “your user just isn’t in the group” until you finally inspect the actual JWT.

If you take one thing from this post, take this. The groups claim is the part that breaks. Always check it first.

The shape of the whole thing

Before the per-app trenches, the high-level picture. Every arrow below is an OIDC flow:

                       ┌─────────────────┐
                       │    Authentik    │   authentik.klimczak.xyz
                       │   (OIDC IdP)    │
                       └────────┬────────┘
                                │
       ┌─────────┬──────────────┼──────────────┬─────────┐
       │         │              │              │         │
       ▼         ▼              ▼              ▼         ▼
   ┌───────┐ ┌────────┐ ┌──────────┐ ┌──────────┐ ┌──────────┐
   │ Vault │ │Grafana │ │Nextcloud │ │ Headlamp │ │ kubectl  │
   │  JWT  │ │Generic │ │ user_oidc│ │  (OIDC,  │ │  (oidc-  │
   │  auth │ │ OAuth2 │ │   app    │ │ token to │ │  login)  │
   │       │ │        │ │          │ │apiserver)│ │          │
   └───────┘ └────────┘ └──────────┘ └────┬─────┘ └────┬─────┘
                                          │            │
                                          └─────┬──────┘
                                                ▼
                                    ┌─────────────────────┐
                                    │   kube-apiserver    │
                                    │  (validates tokens, │
                                    │     applies RBAC)   │
                                    └─────────────────────┘

Three apps (Vault, Grafana, Nextcloud) talk to Authentik directly. Two (Headlamp, kubectl) get an id_token from Authentik but pass it to kube-apiserver, which is the actual validator — that detail mattered a lot once I got to Headlamp.

Each app has its own authentik_provider_oauth2, its own authentik_application, its own group, and its own policy binding. Same shape, same Terraform skeleton, different consumer-side configuration.

App by app, the things that bit me

The Authentik side has the same shape for every app — a group, an authentik_provider_oauth2, an authentik_application, a policy binding. Concretely, the whole Authentik side of an app is one short Terraform file:

resource "authentik_group" "grafana_admins" {
  name = "grafana-admins"
}

resource "authentik_provider_oauth2" "grafana" {
  name               = "grafana"
  client_id          = "grafana"
  authorization_flow = data.authentik_flow.default_authorization_flow.id
  invalidation_flow  = data.authentik_flow.default_invalidation_flow.id
  signing_key        = data.authentik_certificate_key_pair.default.id

  allowed_redirect_uris = [
    {
      matching_mode = "strict"
      url           = "https://grafana.klimczak.xyz/login/generic_oauth"
    },
  ]

  property_mappings = concat(
    data.authentik_property_mapping_provider_scope.scopes.ids,
    [authentik_property_mapping_provider_scope.groups.id],
  )
}

resource "authentik_application" "grafana" {
  name              = "Grafana"
  slug              = "grafana"
  protocol_provider = authentik_provider_oauth2.grafana.id
  meta_launch_url   = "https://grafana.klimczak.xyz/login/generic_oauth"
}

resource "authentik_policy_binding" "grafana_admins_required" {
  target = authentik_application.grafana.uuid
  group  = authentik_group.grafana_admins.id
  order  = 0
}

The data.authentik_* references — default flows, the self-signed signing cert, the built-in scope set — live in one shared file alongside the custom groups property mapping above. Every other app reuses them. This is what I mean by “30-line file”: copy the block, change the names, change the redirect URI, done.

The interesting pieces are on the consumer side.

Vault: an oidc_scopes field nobody mentions

Vault has a first-class OIDC auth method, and configuring it from Terraform is one of the cleaner integrations. There is exactly one trap, and it is the same trap as the groups one above, just dressed differently:

resource "vault_jwt_auth_backend_role" "default" {
  ...
  oidc_scopes = ["openid", "profile", "email", "groups"]   # don't forget groups
  bound_claims = {
    groups = authentik_group.vault_admins.name
  }
}

If oidc_scopes doesn’t include groups, Vault asks Authentik for an ID token without the groups scope, the token comes back with no groups, the bound_claims check fails, and you spend an hour wondering why Authentik says your user is in vault_admins and Vault says they are not.

The other thing about Vault: its UI does not auto-redirect to OIDC. Even with default_role set, the user lands on a token-method picker. The shortcut is to point the Authentik application’s meta_launch_url at the OIDC URL directly:

https://vault.klimczak.xyz/ui/vault/auth?with=oidc&role=default

Now clicking the Vault tile in Authentik’s app library skips the picker. Small thing, but it’s what makes the homelab feel like it’s actually integrated rather than a list of bookmarks.

Grafana: the 11.6 regression that ate an afternoon

Grafana ships in kube-prometheus-stack and exposes its OIDC config as grafana.grafana.ini.auth.generic_oauth.*. Configure it the way every Authentik tutorial tells you to and your login fails with:

user not a member of one of the required groups

Inspect the userinfo response Grafana is reading. The groups are right there: "groups": ["grafana-admins", ...]. The allowed_groups filter is configured with grafana-admins. The string match should work. It does not.

The cause is a regression in Grafana 11.6: the default behavior of pulling groups from the parsed userinfo’s Groups field stopped working. The fix is to set groups_attribute_path explicitly even though the value is the obvious one:

groups_attribute_path: groups

That is the entire change. After it, login works. There is no useful log line that points you at this. There is no migration note in the chart. You just have to know.

The other half of the wiring is getting Authentik’s auto-generated client secret into Grafana without it ever landing in a values file. The Helm provider’s set_sensitive handles it:

resource "helm_release" "prometheus" {
  name       = "prometheus"
  namespace  = "monitoring"
  repository = "https://prometheus-community.github.io/helm-charts"
  chart      = "kube-prometheus-stack"

  values = [file("values/prometheus.yaml")]

  set_sensitive = [
    {
      name  = "grafana.env.GF_AUTH_GENERIC_OAUTH_CLIENT_SECRET"
      value = authentik_provider_oauth2.grafana.client_secret
    },
  ]
}

Grafana reads its OAuth client secret from GF_AUTH_GENERIC_OAUTH_CLIENT_SECRET; Terraform pulls the value directly off the Authentik provider resource and injects it as a pod env var. The secret never lands in version control, never on disk in a values file, never anywhere I have to think about.

Nextcloud: helpful security defaults that aren’t helpful here

Nextcloud’s user_oidc app stores OIDC providers in the database, not in config.php. So you can declaratively manage the Authentik side from Terraform, but configuring the Nextcloud side is a one-shot occ command.

The thing that bit me was a security default. Nextcloud’s HTTP client refuses to connect to RFC1918The RFC defining private IPv4 ranges: 10/8, 172.16/12, and 192.168/16. Not routable on the public internet. addresses by default — sensible, except that inside my cluster, Authentik resolves to 192.168.1.30, which is RFC1918. The result is a confusing error:

Could not reach the OpenID Connect provider

…even though php -r 'curl_init...' from the same pod connects fine. The fix is one config flag:

'allow_local_remote_servers' => true,

The second thing that bit me, sort of recursively, was Nextcloud’s brute-force protection. While I was failing logins because of the misconfig above, Nextcloud noticed my IP racking up failed userOidcLogin attempts and locked it out:

[action: userOidcLogin, attempts: 11]

Now my login was failing for two reasons, and I couldn’t tell them apart. Reset with php occ security:bruteforce:reset <ip>. Or wait. Or, more usefully: check both lists of error messages before assuming you’re still debugging the original problem.

Headlamp: not really an OIDC client, actually

Headlamp is the dashboard I most wanted to “just work” with SSO, and it’s the one that took the most reframing.

Here’s the thing nobody tells you: Headlamp does not run a session against its own service account. Headlamp’s “OIDC” mode means it gets an id_token from the IdP and passes it to the kube-apiserver as the bearer token. The apiserver validates it. The apiserver applies RBAC. Headlamp itself is essentially a static frontend.

So if your kube-apiserver isn’t configured for OIDC — and a homelab kubeadm cluster is not, by default — Headlamp has no way to use your Authentik login meaningfully. The options are:

  1. Paste a long-lived service account token into the UI once. Works, ugly UX.
  2. Forward-authIngress-controller pattern where each request is first sent to an external auth service; if it returns 200 the request proceeds, otherwise the user is redirected to log in. Used to bolt SSO onto apps that don't speak OIDC. at the ingress + service account token internally. Authentik gates the page, Headlamp uses an SA token to talk to the apiserver. You still paste the token once, but at least non-Authentik users don’t see the UI.
  3. Configure kube-apiserver OIDC. The proper solution.

I started with option 2 as a stopgap and have since moved to option 3 — kube-apiserver OIDC is wired up and Headlamp authenticates against it directly, the way it was designed to.

A handful of side-quests came out of this:

That last bullet is the meta-point: Headlamp’s auth model is the apiserver’s auth model. You can put a wrapper in front of it, but you can’t really replace it.

kube-apiserver OIDC: the endgame, eventually

This is the part that makes both Headlamp and kubectl oidc-login from my laptop work properly. The flags are documented, the ClusterRoleBinding is straightforward:

- --oidc-issuer-url=https://authentik.klimczak.xyz/application/o/kubernetes/
- --oidc-client-id=kubernetes
- --oidc-username-claim=preferred_username
- --oidc-username-prefix=oidc:
- --oidc-groups-claim=groups
- --oidc-groups-prefix=oidc:

The matching ClusterRoleBinding maps the Authentik group to cluster-admin. Note the oidc: prefix on the subject name — that’s the --oidc-groups-prefix flag taking effect; Kubernetes prepends it to every group claim from this issuer, so the RBAC subject has to match the prefixed form, not the bare Authentik group name:

resource "kubernetes_cluster_role_binding" "oidc_kubernetes_admins" {
  metadata {
    name = "oidc-kubernetes-admins"
  }
  role_ref {
    api_group = "rbac.authorization.k8s.io"
    kind      = "ClusterRole"
    name      = "cluster-admin"
  }
  subject {
    api_group = "rbac.authorization.k8s.io"
    kind      = "Group"
    name      = "oidc:kubernetes-admins"
  }
}

Two things almost stopped me, both worth knowing about before you start.

Static pods don’t inherit the host’s /etc/hosts. kubeadm runs kube-apiserver as a static pod with hostNetwork: true, so it shares the host’s network namespace, but its /etc/hosts is generated by kubelet and does not include host-level entries. That means if my host resolves authentik.klimczak.xyz to 192.168.1.30 via Pi-hole, the apiserver pod might not — depending on how the pod’s resolver is configured. The fix is either hostAliases in the static pod manifest, or making sure the host’s resolver works inside the pod’s netns. I went with the latter and verified with nsenter.

Log levels lie. With --v=4 and even --v=8, kube-apiserver 1.36 will reject a JWT with a flat invalid bearer token and no further information. I had to confirm by hand that the JWT had the correct iss, aud, groups, and signature, and then go through each of those individually until I found the one the apiserver disagreed with. To get a useful error you really want --authentication-config (the structured replacement for the OIDC flags) with a custom claim validation rule that emits an explicit error — that’s what I ended up using to get unstuck.

It works now. kubectl oidc-login from my laptop, Headlamp through its native OIDC flow, all of it landing on the apiserver and being validated as the same Authentik identity:

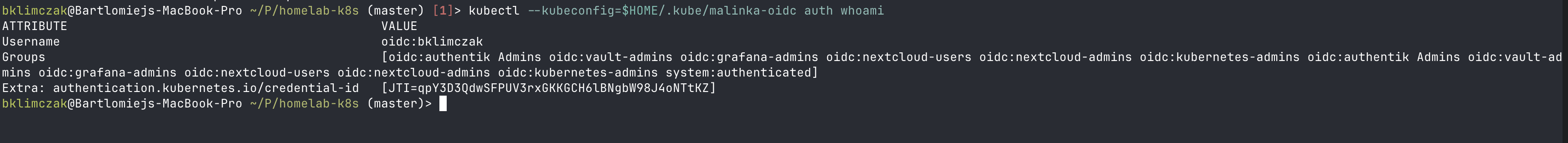

kubectl auth whoami showing the OIDC username and group claims being applied by the apiserver

But the debugging story for kube-apiserver OIDC in 2026 is, frankly, bad. Budget evening hours, not lunch breaks.

Things that aren’t gotchas, but cost me time anyway

A few other things in the Authentik install itself, mostly chart-related:

None of these are intellectually interesting. They just have to be discovered one at a time, by failing.

What I’d tell past-me

Some patterns came up so many times across these apps that they’re worth pulling out:

OIDC token validation is rarely the issue. When something doesn’t work, it’s almost always either (a) wrong or missing claims due to scope/property-mapping config on the IdP, or (b) the consumer can’t reach the IdP’s discovery URL from where it’s actually running. Inspect the token. Curl the discovery URL from inside the pod. Those two checks catch most of it.

The groups claim is the hard part on every app. Default behavior is “no groups.” Configure an explicit groups property mapping on Authentik and request the groups scope on the consumer. Both. Always.

offline_access matters. Apps that use refresh tokens (Headlamp does this constantly) need the offline_access scope on both sides. Without it you’ll see a steady stream of failed to refresh token: getting refresh token: key not found errors and not know why.

One Authentik provider per app, one Authentik group per role. Resist the temptation to share a provider across apps “because they’re the same audience.” The audJWT 'audience' claim — identifies which client the token was issued for. In OIDC, it's the consumer's client_id. RFC 7519. claim semantics get muddled and you lose the ability to revoke an app’s access independently.

Test from inside the consuming pod. Not your laptop. Not a debug pod in kube-system. The pod that’s actually doing the OIDC dance. Network reachability is non-obvious in a homelab cluster, and the failure mode for “consumer can’t reach IdP” looks identical to “credentials are wrong.”

Was it worth it?

Yes. Every app — Vault, Grafana, Nextcloud, Headlamp, and kubectl from my laptop — logs in via Authentik now. One user, one password, one MFA token. Adding the next app is a 30-line Terraform file plus whatever consumer-side config that app demands.

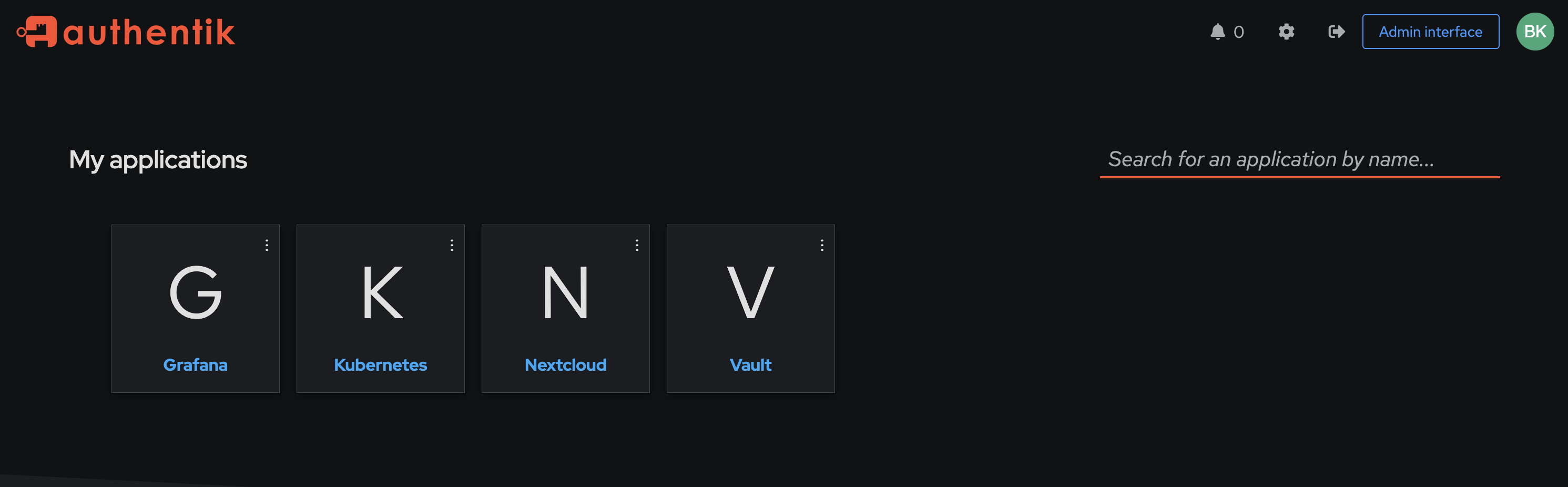

Authentik application library showing tiles for Grafana, Kubernetes, Nextcloud, and Vault

ℹ️ This is the start, not the finish
The cluster already runs Vaultwarden, FreshRSS, Actual Budget, and the homepage dashboard among others. Wiring each of them into Authentik is the same Terraform skeleton from this post — ten or twenty lines, plus whatever the consumer side demands. The hard part was figuring out the pattern; reusing it is the boring part. Which is exactly what I wanted.

But the larger thing I got out of this is a calibrated sense of how “self-hosted SSO” actually feels. The marketing line is that an OIDC provider is plug-and-play and every app in 2026 supports it. Both halves of that are technically true. They’re also misleading. The plugs fit, but the pins are wired differently in every single socket.

If you’re about to do the same project: budget more time than you think, look at the JWT before you look at anything else, and treat the empty groups claim as the first thing to check, not the last.
